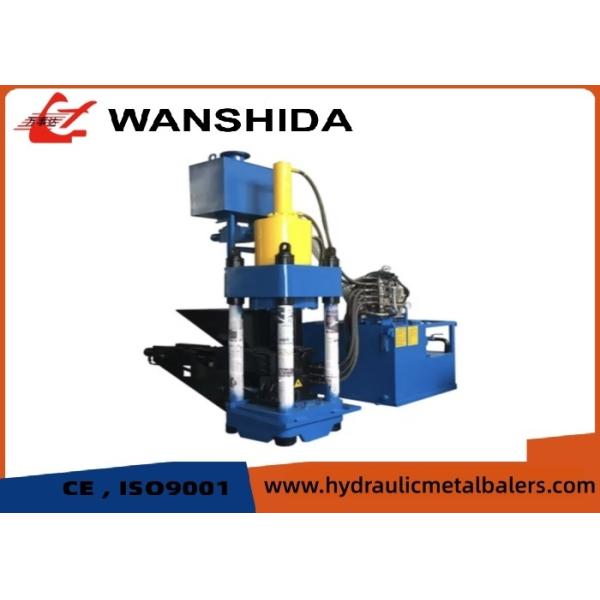

Cast Iron Steel Scrap Briquetting Press 3150kN Metal Chip Recycling Machine

Product Overview:
The Y83-3150 Scrap Briquetting Press is a high-performance recycling machine designed for compressing loose metal chips and cast iron sawdust into dense, high-density briquettes. With a nominal force of 3150 kN and hydraulic-driven technology, this press ensures stable operation, low vibration, and high safety standards. The compact briquettes significantly reduce storage volume, improve furnace efficiency, and increase the value of recycled materials. It is widely used in machining workshops, foundries, and metal recycling facilities.

Key Features:

• Strong Compression Force: 3150 kN nominal force ensures high-density briquettes.

• Flexible Briquette Sizes: Φ150 mm (80–120 mm adjustable) to meet different production needs.

• High Capacity: Processes up to 1500 kg/h of cast iron sawdust.

• Stable Hydraulic System: Smooth operation with no vibration, ensuring safety and reliability.

• Operation Options: Manual or PLC semi-automatic control available.

• Durable and Energy-Saving: Efficient hydraulic drive reduces energy consumption.

• Easy Installation: No underground foundation required, saving installation costs.

Applications:

• Cast iron sawdust recycling

• Steel and aluminum chip briquetting

• Foundry and smelting plants for furnace feeding

• Metalworking workshops to reduce storage and transport costs

• Recycling centers to improve material utilization

Technical Specifications:

• Nominal Force: 3150 kN

• Briquette Size: Φ150 × (80–120) mm

• Pressure on Bale: 250 kN

• Power: 37 kW

• Capacity: 1500 kg/h (cast iron sawdust)

• Operation: Manual or PLC semi-automatic

• Drive: Hydraulic, stable and safe

• No underground footing required

Quality Assurance:
Manufactured according to ISO9001:2000 standards, ensuring reliable quality, long service life, and consistent performance.

FAQ:
Q1: What materials can be processed by the Y83-3150 briquetting press?
A1: It is suitable for cast iron sawdust, steel chips, aluminum chips, and other light metal residues.

Q2: What is the advantage of briquetting metal chips?
A2: Briquetting reduces storage volume, lowers transportation costs, and increases furnace efficiency by improving material density.

Q3: Does the machine require a foundation?
A3: No, the Y83-3150 does not need underground footing, making installation easier.

Q4: Can the operation be automated?
A4: Yes, the machine supports manual and PLC semi-automatic operation.

Q5: What after-sales service is provided?
A5: One-year guarantee for main parts and lifelong technical support are included.
